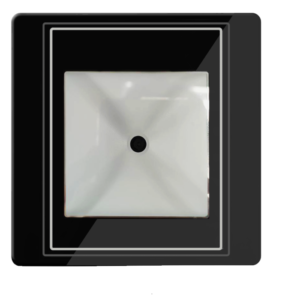

PXR-Q3 Series
QR Code Reader
- Provides dual communication interfaces (Wiegand + RS-485) for more flexible application.
- Supporting scanning static QR code (smart phone or paper printing) and dynamic QR code (with APP)
- Support QR Code scanning function to replace RFID card sensing.
- Able to set RS-485 Node ID, which can be connected to max. of 16 readers.
- Able to set Wiegand output to W26 / W34 interface through RS-485 interface.
Specification：
| Read Format | MIFARE® (13.56 MHz) |
| QR Code Scan |
Auto scan : Get close to scan automatically Supports to scan a QR Code from your smart phone or paper Scan distance : 5 cm above |
| Comm. Interface | Wiegand and RS-485 |
| Input Port | Buzzer x 1 |
| Power Input | DC 12V |
| Current Consumption | 300mA (max.) |
| Operating Temp. | -20° C~70° C / -4° F ~ 158° F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension |
Front view：86mm(L) x 86mm(W) x 39mm(H) Side view：69mm(L) x 66mm(W) x 39mm(H) |
Product Information：
| Model | Description | Donwloads |
| PXR-Q3MWS | Support Wiegand and RS-485 ，MIFARE® (13.56 MHz) reader |  |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | PXR-Q3MWS | |
