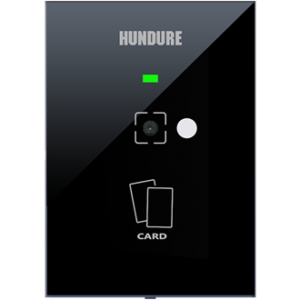

PXR-QR Series
Mifare QR Code /NFC Reader
- Flush-mounted design, compatible with 86 and 120 gang boxes, not limited by the size of the gang box on site.
- Conforms to ISO 14443A, supporting Mifare card.
- Unique ID or Block read format supported and programmable key value.
- Provides RS-485 communication interface for long distance installation.
- Read NFC from Apple and Android phones.
- Support QR Code scanning function to replace RFID cards sensing.
- The QR Code uses encrypted encoding to prevent the exposure of unencrypted card numbers.
- Support dynamic QR Code. It is a one-time QR Code with a built-in expiration date mark. Unable to be used after the expiration date (Need to work with APP).
Specification：
| Model No. | PXR-QRMW |
| Read Format | Mifare (13.56 MHz) QR Code |
| Read Range | 3cm (included) above |
| QR Code Scan |
Auto scan: Get close to scan automatically Supports to scan a QR code from your smart phone or paper Scan Distance : 5cm above |
| Input Ports | Case Sensor x 1, LED Control (Red) x 1, LED Control (Green) x 1, Buzzer x 1 |
| Comm. Interface | Wiegand x 1, RS-485 x 1 |
| Comm. Baudrate | RS-485 : 19,200 bps-N-8-1 |
| LED Indicator | Green / Red Bi-color LED x 1 (Status / Power) |
| Beep Tone | Buzzer |
| ID Setting | 6 digits DIP-SW |
| Ingress Protection | IPX4 |
| Power Input | DC 12V |
| Current Consumption | 300mA (max) |
| Operating Temp. | -20°C~ 70°C / -4°F~ 158°F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension (mm) |
Faceplate: 120(L) × 86(W) × 10.5(H) Controller: 51.1(Ø) × 24(H) |
Product Information：
| Model | Description | Dowloads |
| PXR-QRMWS | Mifare QR Code Reader |  |
| PXR-QRMNSL | Mifare QR Code NFC Reader | |
