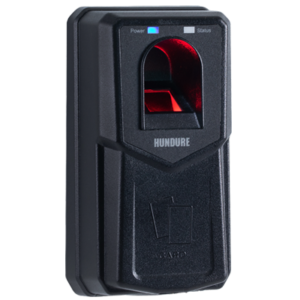

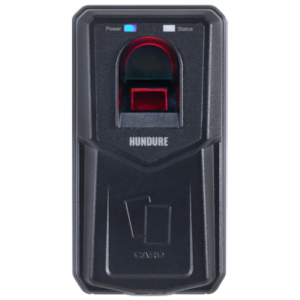

PXR-81F Series
Fingerprint Reader
- Supports 950 users with 2 fingerprint templates each user
- Built-in two communication interfaces. The fingerprint templates can be uploaded / downloaded through TCP/ IP interface to increase the work efficiency.
- Quick and accurate fingerprint verifiacation, supports 1:1 / 1:N identification.
- Easy installation and suits for various location.
- The error checking design to ensure correct data being transmitted.
Specification：
| Read Format | MIFARE® (13.56 MHz) |
| Comm. Interface | Wiegand / RS-485 (Please refer to Order Information)，TCP/IP(Fingerprint Download) |
| Input Ports | 1 Sensor(Case Sensor x1) |
| Fingerprint Capacity | 950 user capacity (2 fingerprint templates per person) |
| Identification Mode | 1：1 / 1：N |
| Identification Time | 1：1 <= 1 sec；1：1,000 <= 1 sec |
| FAR | <=0.001% |
| FRR | <=0.01% |
| Fingerprint Sensor | Optical CMOS Sensor |
| Power Input | DC 12V / 1A |
| Current Consumption | 800mA (max.) |
| Operating Temp. | -10° C~60° C / 14° F ~ 140° F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension | 135mm(L) x 75mm(W) x 41mm(H) |
Order Information：
| Model | Description | Downloads |
| PXR-81MFW | Support Wiegand，MIFARE® (13.56 MHz) fingerprint reader |  |
| PXR-81MFS | Support RS-485，MIFARE® (13.56 MHz) fingerprint reader | |
