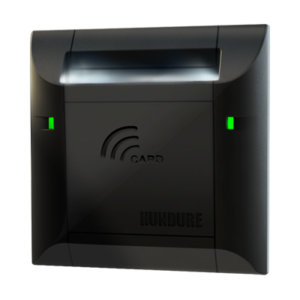

PXR-68MSL
RS-485 L Series Reader
- Slim and stylish outlook with embedded designed.
- Watchdog function secures system free from halting.
- Auto-Learning function. 500 teporary card capacity under standalone operation for equipements emergent opened.
- Each reader contacts with a power device and control the power through swiping valid card.
Specification：
| Read Format | MIFARE® (13.56 MHz) |
| Comm. Interface | RS-485 |
| Output Port | External output (By RLY-66) |
| Power Input | DC 12V / 1A |
| Current Consumption | 250mA (max.) |
| Operating Temp. | -10° C~55° C / 14° F ~ 131° F |
| Relateive Humidity | 20% ~ 80% (Non-condensing) |
| Dimesion | 86mm(L) x 86mm(W) x 34mm(H) |
Product Information：
| Model | Description | Downloads |
| PXR-68MSL | RS-485 L series reader |  |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | PXR-68MSL | |
