| Model No. |

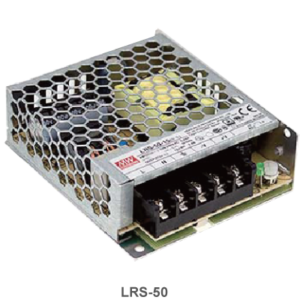

LRS-50-12 |

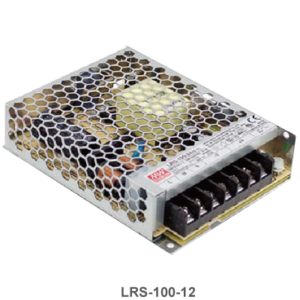

LRS-100-12 |

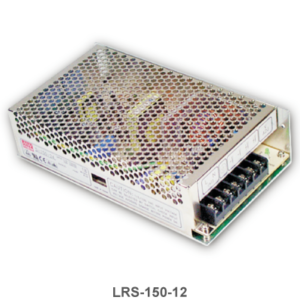

LRS-150-12 |
| Output-DC Voltage |
DC 12V |
DC 12V |
DC 12V |
| Output-Rated Current |
4.2A |
8.5A |
12.5A |
| Output-Rated Power |
50.4W |
102W |
150W |
| Output-Voltage Adj. Range |
10.2~13.8V |
10.2~13.8V |
10.2~13.8V |
| Input-Voltage Range |
85~264VAC |
85~264VAC |
85~132VAC / 170~264VAC (selected by switch) |
| Input-Frequency Range |
47~63Hz |
47~63Hz |
47~63Hz |
| Protection-Overload |
110%~150% Rated output power |
110%~150% Rated output power |
110%~150% Rated output power |
| Protection-Overvoltage |
13.8~16.2V, Protection type: Hiccup mode, recovers automatically after fault condition is removed |
13.8~16.2V, Protection type: Hiccup mode, recovers automatically after fault condition is removed |
13.8~16.2V, Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| Environment-Working Temp. |
-30°C ~ 70°C |
-30°C ~ 70°C |
-30°C ~ 70°C |
| Environment-Working Humidity |
20~90% RH non-condensing |
20~90% RH non-condensing |
20~90% RH non-condensing |
| Dimensions ( L x W x H ) mm |
99 x 82 x 30 |
129 x 97 x 30 |
159 x 97 x 30 |
