| Model |

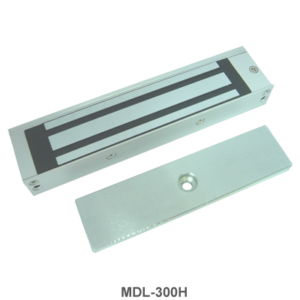

MDL-300H |
MDL-100WR |

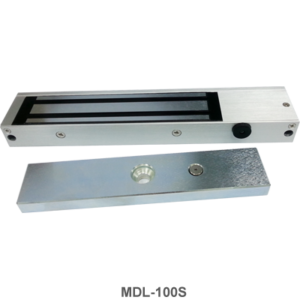

MDL-100S |

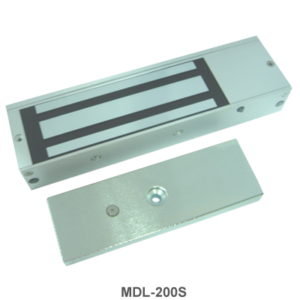

MDL-200S |
| Holding Force |
300LB |
600LB |
600LB |
1200LB |
| Installation |
Exposed Type |
Exposed Type |
Exposed Type |
Exposed Type |
| Water-proof |
N/A |
Yes |
N/A |
N/A |
| Application |
Outswing door, inswing door, drawer and cupboard |
Outdoor Environment |
Outswing door, Inswing door. |
Outswing door, Inswing door. |
| Power Input |
DC 12V / 360mA |
DC 12V / 500mA, DC 24V / 250mA |
DC 12V / 500mA |
DC 12V / 500mA |
| Dimension of Lock |
166mm(L) x 38.6mm(W) x 21.5mm(H) |
203mm(L) x 44mm(W) x 40mm(H) |
250mm(L) x 47.2mm(W) x 26.6mm(H) |
266mm(L) x 73mm(W) x 40mm(H) |
| Dimension of Armature Plate |
130mm(L) x 32mm(W) x 8mm(H) |
185mm(L) x 38mm(W) x 12.5mm(H) |
185mm(L) x 38mm(W) x 12.5mm(H) |
185mm(L) x 61mm(W) x 16mm(H) |
