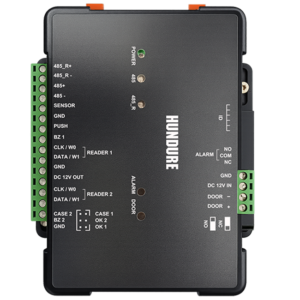

ACU-100E
Single Door Slave Control Panel
- Provide 2 relay outputs for electronic lock and alarm.
- ACU-100E slave control panel works with GCU、RAC-2400.
- Control panel and reader separate design, maximum connects 2 ABA Track 2 / Wiegand readers. Able set two-way readers or reader in and exit button out.
Feature：
- Provide 2 relay outputs for electronic lock and alarm.
- ACU-100E slave control panel works with GCU、RAC-2400.
- Control panel and reader separate design, maximum connects 2 ABA Track 2 / Wiegand readers. Able set two-way readers or reader in and exit button out.
- Watchdog function ensures system free from halting.
- Provide RS-485 comm. interface, ensure electronic lock and alarm controlled by main controller.
- Provide optical coupled isolated sensors for door sensor, exit button and reader tamper.
- Auto-Learning function. 470 valid cards capacity under standalone operation mode.
- ESD / Surge protection design to protect devices & enhance communication quality.
- Control panel holder & block terminal ensure easy installation & easy maintenance
Specification：
| Input Ports | 4 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 2) | |
| Output Ports | 2 Relays (Door Lock x 1、Alarm x 1) | |
| Cardholders | 470 | |
| LED Indicator | Power / Output Status / Comm. | |
| ID Setting | DIP switch setting | |
| Reader Port | ABA-Track2 / Wiegand | |
| Power Input | DC 12V / 1A | |
| Current Consumption | 300mA (excluding slave reader) | |
| Comm. Interface | RS-485 | |
| Comm. Baudrate | 19,200 bps-N-8-1 | |
| Operating Temp. | -10°C ~ 55°C / 14°F ~ 131°F | |
| Relative Humidity | 20% ~ 80% (Non-condensing) | |
| Dimension | 145mm (L) x 129.5mm (W) x 36.5mm (H) | |
| Weight (Device) | 334g | |
