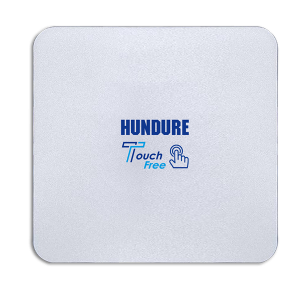

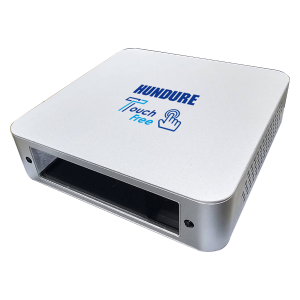

HDE-TF101A
Elevator Control Panel
Motion-Based AI Touch-Free Elevator Button Controller
- Floating 3~5cm contactless elevator button to prevent contact infection.
- Contactless AI algorithm, deep learning to identify finger trigger mode and trigger accurately.
- Eliminates the problem of traditional infrared triggering errors. It has high stability and avoids accidentally triggering the elevator button due to crowded cars or backpacks.
- Retains the original press button method for a smooth operating experience.
- Suitable to all brands of elevators without changing the original panel of the elevator.
Feature：
- Floating 3~5cm contactless elevator button to prevent contact infection.
- Contactless AI algorithm, deep learning to identify finger trigger mode and trigger accurately.
- Eliminates the problem of traditional infrared triggering errors. It has high stability and avoids accidentally triggering the elevator button due to crowded cars or backpacks.
- Retains the original press button method for a smooth operating experience.
- Suitable to all brands of elevators without changing the original panel of the elevator.
- Compatible with elevator floor control systems, achieving safety control and epidemic prevention.
- Support elevator system cancellation function.
Specification：
| Model No. | HDE-TF101A |
| Trigger Mode | Contactless AI algorithms |
| Comm. Interface | RS-485, support MODBUS RTU |
| Case Material | Aluminum alloy |
| Installation Method | Wall monut |
| LED Indicator | LED x 1 (Green: Standby; Blue: Position) |
| Beep Tone | Buzzer |
| Voltage Input | DC 24V / 2V |
| Power Consumption | <15W |
| Operating Temp. | 0˚C~ 40˚C |
| Relative Humidity | 10% ~ 80% (Non-condensing) |
| Dimension | 155 (L) x 145 (W) x 38 (H) |
| Weight (g) | 800g ± 5% |
Product Information：
| Model | Description | Downloads |
| HDE-TF101A | Motion-Based AI Touch-Free Elevator Button Controller |  |
