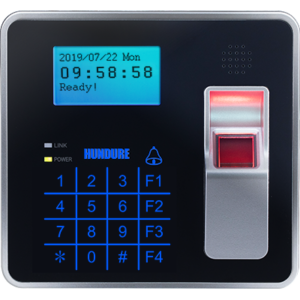

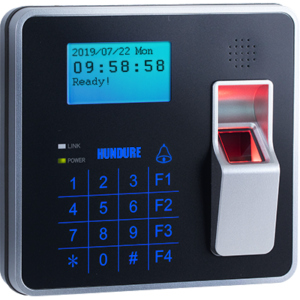

RAC-970F Series
Fingerprint Access Controller
- Built-in RS-485 & TCP/IP communication interface to PC.
- The standard model can access 950 users with 2 fingerprint templates per each user (total 1,900 fingerprint templates ). The storage event record is up to 100,000 events.
- Built-in UV function, which can regularly irradiate UV light to the fingerprint detective area to reduce the risk of contact infection.(RAC-970F-UV)
Feature：
- On-board lithium battery ensures data storage can reach up to 1 year upon power outage
- Bell key function design. Suit for various location.
- High security, using encryption with random code to saving finger characteristic.
- Casing tamper proof detection and door tamper alarm.
- Duress card/code setting. When door opened in the emergency, controller will send signal to control center at the same time for tracing and rescue.
- Slim, stylish design, sensitive touch keypad with blue backlight.
- Unique ID or Block read format supported and programmable key value.( RAC-970PMF / RAC-970PMF-UV)
- Provide 128 time zones and time schedules, 8 time conditional unlock door schedules (per week).
- Provide 100 holiday schedules per year.
- Built-in RS-485 & TCP/IP communication interface to PC.
- Large LCD display time, date, weekday and company name. And show cardholder Chinese / English name or card number after verification.
- RTC ensures to provide correct date and time. Watchdog function secures system free from halting.
- The standard model can access 950 users with 2 fingerprint templates per each user (total 1,900 fingerprint templates ).
- The advanced model can access 4,750 users with 2 fingerprint templates per each user (total 9,500 fingerprint templates).
- Quick and accurate fingerprint verification, supports 1:1 authentication & 1:N identification. And audible voice prompts guiding users during verification process.
- Built-in UV function, which can regularly irradiate UV light to the fingerprint detective area to reduce the risk of contact infection.(RAC-970F-UV)
Specification：
| Read Format | EM (125 KHz) or MIFARE® (13.56 MHz) |
| Slave Reader | T2 or Wiegand (1 set) |
| Input Ports | 3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1) |
| Output Ports (Built-in) | Relay x 1 (Door Lock or Bell) |
| Output Ports (External) | O.C.Output x 2 (Door Lock / Alarm or Siren, external ACU-30) |
| Cardholders | 40,000 |
| Events | 100,000 |
| Fingerprint Capacity | 950 user capacity. ( 2 fingerprint templates per person) |
| Identification Mode | 1：1 / 1：N |
| Identification Time | 1：1 <= 1 sec. ； 1：1,000 <= 1 sec. |
| FAR | <= 0.001% |
| FRR | <= 0.01% |
| Fingerprint | Optical CMOS Sensor |
| ID Setting | Command setting by keypad |
| Power Input | DC 12V / 1A ； DC 12V / 1.5A (RAC-970F-UV) |
| Current Consumption | 1A (max.) / 1.5A (max.) (RAC-970F-UV) |
| Comm. Interface | RS-485 / TCP/IP |
| Operating Temp. | 0° C~55° C / 32° F ~ 131° F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension | 140mm(L) x 130mm(W) x 41mm(H) |
Product Information：
| Model | Description | Downloads |
| RAC-970PEF | EM (125 KHz) fingerprint access controller |  |
| RAC-970PMF | MIFARE® (13.56 MHz) fingerprint access controller | |
| RAC-970PEF-UV | Built-in UV function。EM (125 KHz) fingerprint access controller | |
| RAC-970PMF-UV | Built-in UV function。MIFARE®(13.56MHz) fingerprint access controller | |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | RAC-970F Series | |
