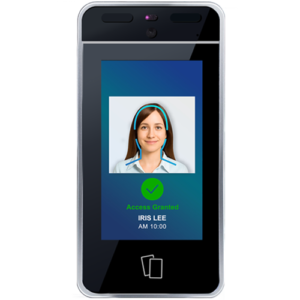

HAC-990FA Series
Full Touch Screen Facial Recognition Access Controller
- Support storage and recognition of up to 10,000 facial data.
- Built-in face detection, 2D liveness detection, and face recognition are 3 core technologies to ensure accurate and secure recognition.
- 10,000 users, recognition time ≤ 1.5 seconds; 5,000 users, recognition time ≤ 1.2 seconds.
- Support mask detection, applicable to diverse environments and able to recognize people of all races worldwide.
- 5″ color capacitive touch
Feature：
- Support storage and recognition of up to 10,000 facial data.
- Built-in face detection, 2D liveness detection, and face recognition are 3 core technologies to ensure accurate and secure recognition.
- 10,000 users, recognition time ≤ 1.5 seconds; 5,000 users, recognition time ≤ 1.2 seconds.
- Support mask detection, applicable to diverse environments and able to recognize people of all races worldwide.
- 5″ color capacitive touch screen provides a user-friendly operating interface.
- Built-in 2M Pixel camera, provides QR Code scanning function.
- Large memory capacity; Support 150,000 cardholders.and 300,000 events.
- Allow standalone operation and settings; Able to add cardholders authorizations.
- Provide 256 time zones and time schedules, 8 time conditional unlock door schedules(per week).
- Provide 32 working shifts and 32 siren outputs. LCD will display current shift and thedevice sound a siren. (Need to work with ACU-90)
- Provide 2 groups of holiday setting; each holiday group supports 100 holidays.
- Support swipe card and swipe card with pin codes entey modes.
- Case tamper detection and door ajar alarm.
- Adjustable Push Button, Door Sensor mode (NO/NC) and door sensor detection time.
- Support unique ID or Block read format and programmable key value. (Mifare modelonly).
- Built-in proximity detection function; Enable power saving in standby mode.
- Support conditional unlock door schedules; Set First Card rule to conditional unlock schedules.
- Able to connect T2/Weigand slave reader.
- Settable whether to store invalid card records.
- Blacklist and Duress setting functions.
- Built-in Web Server, no software installation is required. Able to control functions through the browser.
Specifications：
| Read Format | EM ( 125 KHz ) / Mifare (13.56 MHz ) | |
| Read Range | 3cm above | |
| CPU | 64 bit 4 Core Cortex-A53 + Cortex-M4 | |
| Memory Capacity | 16GB eMMC / 2GB LPDDR4 | |
| Face Capacity | 10,000 | |
| Recognition Parameter | TAR 98.85%, FAR 0.001 % | |
| Cardholders | 150,000 | |
| Events | 300,000 | |
| Input Port | 3 Sensors (Door Sensor x 1, Exit Button x 1, Case Sensor x 1) | |
| Output Port |
Relay x 1; O.C. Output x 1 (For ACU-90); (Alarm /Door Bell/Siren, external ACU-90) |
|
| LCD Display | 5" Color LCD | |
| Video Input | 2M Pixel CMOS Image Sensor | |
| Voice Input | MIC x 1 | |
| Beep Tone | Buzzer x 1, Speaker x 1 | |
| Slave Reader Interface | T2/W26/W34 | |
| Real Time Clock | Yes | |
| Power Input | DC 12V / 2A (max, excluding slave reader) | |
| Comm. Interface | TCP/IP × 1; RS-485 x 1 | |
| Comm. Baudrate | RS-485: 9,600~19,200 bps-N-8-1；TCP/IP: 10/100 Mbps | |
| Operating Temp. | 0°C~ 60°C / 32°F~ 140°F | |
| Relative Humidity | 20% ~ 80% (Non-condensing) | |
| Dimensions (mm) | 185 (L) x 92 (W) x 29 (H) | |
Product Information：
| Model No. | Description | Downloads |
| HAC-990PEFA | EM (125 KHz) Full Touch Screen Facial Recognition Access Controller |  |
| HAC-990PMFA | MIFARE® (13.56 MHz) Full Touch Screen Facial Recognition Access Controller | |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | HAC-990PxFA Series | |
