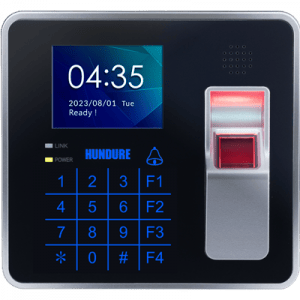

HAC-971F Series
Fingerprint Access Controller
- Support NFC to open door function. After installing Hundure App on NFC-enabled mobile phone, enabling NFC function and placing mobile phone near to controller for door unlock.
- Bell key function design. Suit for various location.
- Provide case tamper proof and door ajar alarm.
- Equipped with 2.4” color LCD；Slim, stylish design with waterproof sensitive touch keypad with blue backlight.
- Provide intuitive graphical function menu for hardware setting.
- Provide graphic menu; Icons for hardware setting and device information.
Feature：
- Support NFC to open door function. After installing Hundure App on NFC-enabled mobile phone, enabling NFC function and placing mobile phone near to controller for door unlock.
- Bell key function design. Suit for various location.
- Provide case tamper proof and door ajar alarm.
- Equipped with 2.4” color LCD；Slim, stylish design with waterproof sensitive touch keypad with blue backlight.
- Provide intuitive graphical function menu for hardware setting.
- Provide graphic menu; Icons for hardware setting and device information.
- Provide 256 time zones and weekly time schedules, 8 time conditional unlock door schedules per day.
- Provide 32 working shifts and 32 siren schedules. Able display current shift or active alarm. Provide 2 sets of 100 holiday schedules for current year and next year.
- Built-in RS-485 and TCP/IP communication interface to PC
- Provide memory buffer full warning.
- Blacklist and Duress card/code setting. When door opened in the emergency, controller will send signal to control center at the same time for tracing and rescue.
- RTC ensures to provide correct date and time. Watchdog function secures system free from halting.
- The standard model can access 950 users with 2 fingerprint templates per each user (total 1,900 fingerprint templates ).
- Quick and accurate fingerprint verification, supports 1:1 authentication & 1:N identification. And audible voice prompts guiding users during verification process.
- On-board lithium battery ensures data storage can reach up to 1 year upon power outage.
- Unique ID or Block read format supported and programmable key value. (Mifare model only) .
- Conforms to ISO 14443A standard; supporting Mifare card. (Mifare model only)
- Support remote control function.
Specification：
| Read Format |
EM (125 KHz) or Mifare (13.56 MHz) or NFC (Android 5.0+ NFC phone ) – need to workwith App |
| Slave Reader | T2 or Wiegand (1 set) |
| Input Ports | 3 Sensors (Door Sensor x 1, Exit Button x 1, Case Sensor x 1) |
| Output Ports (Built-in) | Relay x 1；O.C. Output x 2 ( Door Lock / Alarm or Siren , external ACU-30 ) |
| Cardholders | 80,000 |
| Events | 100,000 |
| Fingerprint Capacity | 950 user capacity. ( 2 fingerprint templates per person) |
| Identification Mode | 1：1 / 1：N |
| Identification Time | 1：1 <= 1 sec. ; 1：1,000 <= 1 sec. |
| FAR / FRR | <=0. 001% / <=0. 01% |
| Fingerprint Sensor | Optical CMOS Sensor |
| LED Indicator | Power / Comm. / Status |
| LCD Display | 2.4" Color LCD (240×320) |
| Keypad | 17 Keys (F1-F4, 0-9, ＊, ＃, Bell) (Sensitive Touch Keypad) |
| Real Time Clock | Yes |
| Beep Tone | Buzzer & Operating steps sound |
| ID or IP Setting | Command setting by keypad |
| Power Input | DC 12V / 500mA |
| Current Consumption | 500mA (max.) |
| Comm. Interface | RS-485 / TCP/IP |
| Comm. Baudrate | RS-485：9,600/19,200 bps-N-8-1；TCP/IP：10/100M |
| Operating Temp. | 0˚C~ 70˚C / 32˚F~ 158˚F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension | 140mm(L) x 130mm(W) x 41mm(H) |
Product Information：
| Model | Description | Downloads |
| HAC-971F | fingerprint access controller |  |
