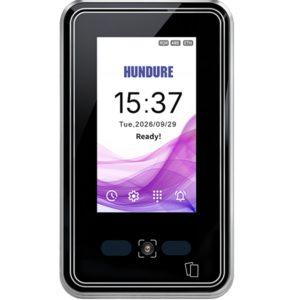

HAC-300QM Series
QR Code Access Controller
- With tempered glass faceplate, the controller is both technological and stylish.
- Support QR Code scanning function to replace RFID cards sensing
- Support to scan a QR Code from your mobile phone or paper.
- Support dynamic QR Code. It is a one-time QR Code with a built-in expiration date mark. Unable to be used after the expiration date (Need to work with App).
- The QR Code has an encrypted code to avoid the leakage of the plain code card number.
Feature：
- With tempered glass faceplate, the controller is both technological and stylish.
- Support QR Code scanning function to replace RFID cards sensing
- Support to scan a QR Code from your mobile phone or paper.
- Support dynamic QR Code. It is a one-time QR Code with a built-in expiration date mark. Unable to be used after the expiration date (Need to work with App).
- The QR Code has an encrypted code to avoid the leakage of the plain code card number.
- Provide case tamper proof and door ajar alarm.
- Support 80,000 cardholders (max) and 100,000 events.
- Equipped with 4.3″color LCD.
- Provide intuitive graphical function menu for hardware setting.
- Provide 256 time zones and weekly time schedules, 8 time conditional unlock door schedules per day.
- Provide 32 working shifts and 32 siren schedules. Able display current shift or active alarm. (Need to work with ACU-30)
- Provide 2 sets of 100 holiday schedules for current year and next year.
- Unique ID or Block read format supported.
- Supports anti-passback to every single door.
- Built-in RS-485 and TCP / IP communication interface to PC.
- Provide memory buffer full warning.
- Blacklist and Duress card/code setting.
- On-board lithium battery ensures data storage can reach up to 1 year upon power outage.
- Conforms to ISO 14443A standard; supporting Mifare card.
Specifications：
| Read Format | Mifare (13.56MHz) QR Code |
| Read Range | 5cm above |
| QR Code Scan | Auto scan：Get close to scan automatically Supports to scan a QR Code from your smart phone or paper (1.5 x 1.5cm) Scan Distance：5cm above |
| Cardholders | 80,000 |
| Events | 100,000 |
| Input Port | 3 Sensors (Door Sensor x 1, Exit Button x 1, Case Sensor x 1) |
| Output Port | Relay x 1; O.C. Output x 2 (Alarm /Door Bell/Siren, external ACU-30) |
| LCD Display | 4.3″ TFT LCD |
| Beep Tone | Buzzer x 1 |
| Slave Reader Interface | T2/W26/W34/RS-485 |
| Real Time Clock | Yes |
| Power Input | DC 12V~24V / 500mA (max, excluding slave reader) / PoE |
| Comm. Interface | TCP/IP × 1; RS-485 (Reserved) |
| Comm. Baudrate | RS-485：19,200 bps-N-8-1 TCP/IP：10/100 Mbps |
| Operating Temp. | -20°C~ 70°C / -4°F~ 158°F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimensions (mm) | 161.4 (L) x 93 (W) x 28.3 (H) |
Product Information：
| Model No. | Description | Downloads |
| HAC-300QM | MIFARE® (13.56 MHz) QR Code Access Controller |  |
| HAC-300QM-V | MIFARE® (13.56 MHz) QR Code Access Controller | |
