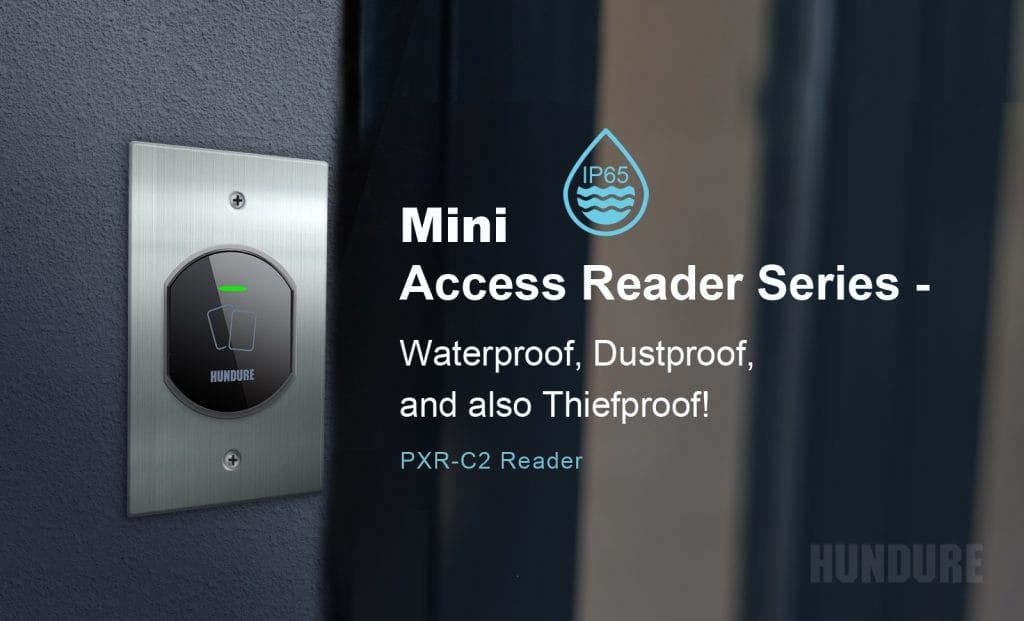

Hundure PXR-C2 “Mini” Access Reader Series – Waterproof, Dustproof, and also Thiefproof!

PXR-C2 mini reader series has a small and compact appearance. Its embedded design is compatible with an 120 or 86 single gang box. There is no need to drill holes, and it can be installed flush with the wall without affecting the decoration. It’s easy to use and provides excellent access control security.

PXR-C2 is capable of reading 125KHz EM card or 13.56MHz Mifare card, and supports Wiegand, T2 and RS-485 interfaces, providing you with flexible options to work with the controller. The reader is equipped with high-quality red and green dual-color LEDs, allowing you to easily identify the status of the reader.

PXR-C2 is packaged in a waterproof and dustproof casing, supports IP65 protection rate, and can withstand very harsh environments. It is suitable for installation indoors and outdoors, and is the best choice for access control security protection.

Key features of PXR-C2 Reader

•  Mini flush-mount reader with compact dimension and powerful function.
• Support 125KHz or 13.56MHz card format.
• Provides multiple communication interfaces (T2/Wiegand/RS-485) to connect with controllers for different site applications
• IP65 rated ingress protection, suitable to install indoor and outdoor environments.
• Watchdog function secures system free from halting.
• Two dimensions are available for different market requirements : PXR-C2EWSA/C2MWS-A for US Specification and PXR-C2EWS-E/C2MWS-E for European Specification.
