HPB-10P-E 3-IN-1Non-Contact Exit Switch

HPB 10P website EN 2

3-in-1 exit switch for exit, emergency and
fire linkage door release

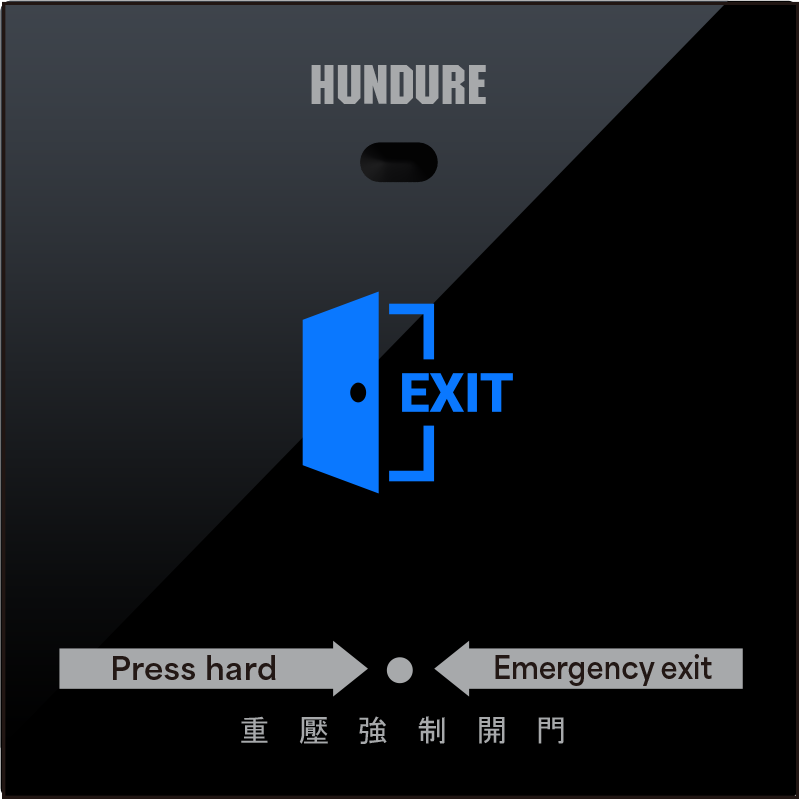

HPB-10P-E exit button uses an infrared “touchless” sensing method for door unlocking. Simply place your hand lightly in front of the HPB-10P-E, and when an object is detected, the door will unlock. There’s no need to “touch” it, which effectively reduces the risk of touch-based infection.

Featuring a tempered glass faceplate, HPB-10P-E is very elegant, stylish and durable. Its embedded design is compatible with an 86 single gang box. There is no need to drill holes, and it can be installed flush with the wall without affecting the intrtior decoration. HPB-10P-E comes in a waterproof and dustproof casing, supporting an IP65 protection rating, making it suitable for both indoor and outdoor installation.

This exit switch has been integrated with emergency push button function already. An additional emergency break glass case is not required, so users’ hands will not get cut from breaking glass. The emergency push button uses a pressure sensor, which can be activated when the force reaches 3KG and can be used repeatedly. HPB-10P-E can be connected to an external alarm. It’s equipped with a fire alarm sensor input that can be directly linked to a fire alarm system to activate emergency door opening. This convenient device, combining an exit switch, emergency door release, and fire linkage door release, makes for an ideal all-in-one egress solution.

Key features of HPB-10P Smart Exit Switch

  • Small and flush mounted design is attractive and aesthetics.
  • User-friendly design for user’s intuitive operation.
  • Features a door release button, an emergency door release button, and fire alarm linkage.
  • Adopts the contactless Infrared to detect the objects. Within the infrared sensing range, when the object is detected, the relay will be triggered to release the electric lock.
  • In case of emergency, just press the exit button, and the door will be forced open.
  • Equipped with fire alarm sensor input, it can be directly connected to the fire alarm system to activate the emergency door opening.
  • Supports IP65 rated ingress protection.
